STEAM BOILER WATER ENGINEERING

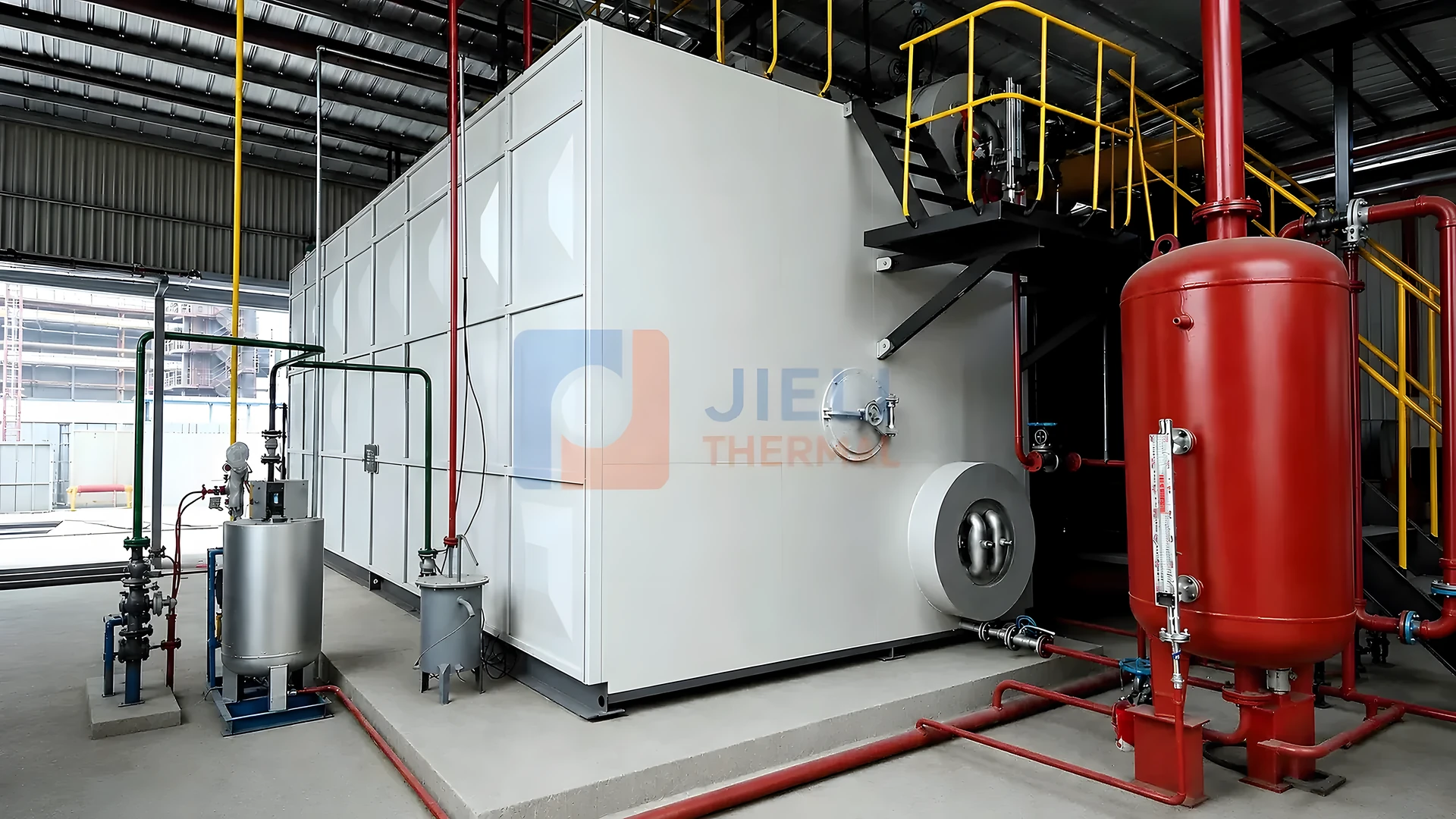

Industrial Steam Boiler Water Treatment & Blowdown Guide
Connect raw-water analysis, pretreatment, feedwater conditioning, condensate return, boiler-water monitoring and safe blowdown into one steam-plant design.
QUICK ANSWER
Treat makeup water, recover clean condensate and control boiler-water concentration as one system.
Prevent scale
Hardness and silica must be controlled to protect heat-transfer surfaces and steam quality.
Limit corrosion
Dissolved oxygen, carbon dioxide, pH and chemical treatment require a coordinated program.
Control blowdown
Continuous and bottom blowdown serve different purposes and must be handled safely.
Design boundary: raw water, pretreatment, feedtank or deaerator, chemical dosing, boiler-water testing, blowdown and condensate return must be specified together.
01 · SOURCE WATER
A potable-water report is not a boiler-water treatment design.
Obtain representative raw-water data for hardness, alkalinity, conductivity or TDS, silica, chlorides, iron, manganese, suspended solids, pH and seasonal variation. The required treatment depends on boiler pressure, steam purity, condensate return, makeup percentage, operating hours and the boiler or water-treatment specialist’s limits.
Spirax Sarco notes that minerals acceptable in drinking water can damage boilers, while dissolved oxygen and carbon dioxide promote corrosion. The water program therefore has to address both deposit formation and corrosion rather than focusing on one softener value.
02 · TREATMENT TRAIN
Choose equipment from the analysis and operating pressure.
| Stage | Typical purpose | Selection inputs |
|---|---|---|
| Clarification / filtration | Remove suspended solids and protect downstream equipment | Turbidity, particles, flow and backwash water |
| Softening | Exchange calcium and magnesium hardness | Hardness load, regeneration strategy and leakage target |
| RO or demineralization | Reduce dissolved solids where required | Water chemistry, recovery, reject disposal and pressure |
| Feedtank / deaeration | Heat feedwater and reduce dissolved gases | Makeup, condensate, steam availability and venting |
| Chemical dosing | Support the agreed internal treatment program | Boiler pressure, metallurgy and specialist control limits |
Do not publish or purchase from one universal chemistry limit. Boiler manufacturer instructions, the selected water-treatment program, applicable code, steam end-use requirements and local discharge rules establish the project values.
03 · CONDENSATE RETURN
Clean condensate saves water, chemicals and sensible heat.
Record the percentage, temperature, pressure and contamination risk of every return stream. Condensate from a clean closed heat exchanger is different from condensate that could contact product, process chemicals or leaking coils. Install monitoring and diversion where contamination is credible.
Higher return reduces cold makeup and treatment demand, but return pressure, flash steam, receiver venting, pump arrangement and water hammer must be engineered. The industrial steam boiler piping guide places condensate recovery inside the complete boiler-house boundary.
04 · TDS BLOWDOWN
Use a mass balance for preliminary continuous-blowdown screening.
Under a simplified steady-state balance, assume dissolved solids enter with feedwater, leave with blowdown and do not leave with steam. Then:
B ÷ S = TDSfeed ÷ (TDSboiler − TDSfeed)
Here B is continuous blowdown mass flow and S is steam production. This screening equation is not a chemistry specification. The allowable boiler-water concentration must come from the boiler and water-treatment specialists for the actual pressure, steam purity and chemical program.
Bottom blowdown removes settled sludge and is not interchangeable with continuous TDS control. It releases hot pressurized water and must discharge through correctly engineered valves, piping and a blowdown vessel or approved recovery system.
05 · WORKED EXAMPLE
Illustrative blowdown estimate for a 10 t/h steam boiler.
Assume feedwater TDS of 100 mg/L, a specialist-approved boiler-water control value of 2,500 mg/L and 10,000 kg/h steam production. These concentrations are illustrative, not universal limits.
- Blowdown-to-steam ratio: 100 ÷ (2,500 − 100) = 0.04167.
- Continuous blowdown: 10,000 × 0.04167 = approximately 417 kg/h.
- Feedwater flow before other losses: 10,000 + 417 = approximately 10,417 kg/h.
If improved pretreatment reduces feedwater TDS to 30 mg/L while the approved boiler-water limit remains unchanged, the same simplified calculation gives about 121 kg/h. The energy and water benefit must be compared with treatment capital, reject water, chemicals and operating reliability.
06 · HEAT RECOVERY
Blowdown is an energy stream as well as a water-quality requirement.
Continuous blowdown leaves the boiler at pressure and saturation temperature. A project may recover flash steam to the feedwater system and transfer heat from the remaining hot liquid into makeup water. The recovery arrangement must account for pressure reduction, flash fraction, vessel sizing, drainage, venting, fouling and local discharge temperature limits.
The U.S. Department of Energy lists improved water treatment, minimized blowdown, blowdown heat recovery and condensate recovery among common steam-system performance opportunities. Evaluate them as a system rather than as isolated accessories.
Water-treatment and blowdown operating checklist
- Trend raw-water, treated-water, feedwater, boiler-water and condensate results;
- Verify softener regeneration, hardness leakage and chemical day-tank inventory;
- Check feedtank temperature, deaerator venting and dissolved-oxygen program;
- Test conductivity/TDS controls against calibrated grab samples;
- Inspect bottom-blowdown procedures, valves, vessel and safe discharge route;
- Monitor condensate for process contamination before returning it;
- Record makeup, condensate, blowdown, steam production and fuel together.
TECHNICAL REFERENCES
Primary steam and water references.
- U.S. Department of Energy — Improving Steam System Performance
- Spirax Sarco — Water treatment, storage and blowdown
- Spirax Sarco — Controlling TDS in boiler water
- Spirax Sarco — Blowdown heat recovery
Water chemistry and blowdown equipment are safety-critical. Final values and procedures require the boiler supplier, qualified water-treatment specialist, local authority and site operating team.
FREQUENTLY ASKED QUESTIONS
Steam boiler water-treatment FAQ
Why does an industrial steam boiler need water treatment?
Treatment controls scale-forming minerals, dissolved gases, suspended solids and chemistry that can cause deposits, corrosion, carryover, poor heat transfer and equipment damage.
How is continuous boiler blowdown estimated?
A simplified TDS balance gives blowdown divided by steam as feedwater TDS divided by boiler-water TDS minus feedwater TDS. The allowable boiler-water value must be set by qualified boiler and water-treatment specialists.
Are continuous blowdown and bottom blowdown the same?
No. Continuous or TDS blowdown controls dissolved-solids concentration, while bottom blowdown removes settled sludge. Their valves, timing, flow and safety arrangements differ.
Should all condensate be returned to the boiler?
Return clean condensate where practical, but monitor or divert streams that could be contaminated by process leaks. The recovery system must also manage pressure, flash steam, receivers, pumps and water hammer.
