Thermal Oil Heater for Plywood Hot Press: Sizing & System Guide

01 · PRODUCTION BASIS

Begin with panel output, press cycles and the real operating schedule.

For each press, record panel mass, dimensions, initial/final temperature, moisture change, adhesive requirements, platen mass, cycle time and loading sequence. Keep separate data for each product.

Model simultaneous startup, staggered production and minimum load. Add only agreed future capacity.

02 · HEAT BALANCE

Build the process duty from measurable heat consumers.

Separate panel heating, actual moisture evaporation, tooling warm-up and losses. Avoid applying duplicate design margins.

Screening equation: Q_useful = Q_panel + Q_moisture + Q_{press warm-up} + Q_{process loss} + Q_{distribution loss}.

For a batch, sensible energy is m × cₚ × ΔT; divide by the heating time to obtain average duty. Continuous sensible duty is ṁ × cₚ × ΔT. Add sensible and latent heat for moisture actually removed. Use measured or press-supplier data.

Check the heat balance at a defined boundary: product, tooling, stored heat and losses. This follows the systems method in the DOE process-heating reference below.

03 · SIMULTANEOUS PEAK

Normal production, cold startup and future expansion are different cases.

Example: 2.10 MW simultaneous duty plus one stated 10% allowance gives 2.31 MW, approximately 2 million kcal/h. Check startup time and minimum load separately.

04 · TEMPERATURE LEVEL

Press temperature does not equal heater outlet temperature.

Set oil supply/return temperatures from the required platen temperature and heat-transfer performance. An undersized platen circuit should not be compensated for simply by raising oil temperature.

Confirm the selected heat-transfer fluid's operating range, maximum bulk temperature and maximum film temperature with its supplier. The heater designer must check heat flux and circulation at normal and minimum load; the process-equipment supplier must confirm the heat-transfer area and required approach temperature.

05 · CIRCULATION LOOP

Multiple presses require branch resistance and control to be visible in the hydraulic model.

Calculate flow from duty, fluid specific heat and ΔT. For pump head, combine common piping losses with the controlling parallel branch; do not sum the losses of all parallel branches. Check coil loss, hot/cold properties, NPSH and minimum heater flow.

Balance parallel presses and maintain heater flow when branches close. See the thermal-oil flow and pipe-size guide and circulation-pump guide.

06 · FUEL ROUTE

Choose gas, oil, biomass or coal from the complete plant boundary.

A gas or liquid-fuel heater can provide compact packaging and responsive modulation where fuel quality and supply pressure are stable. Biomass can be attractive where reliable residues are available, but storage, feeding, furnace, grate, ash, dust and emissions equipment become part of the selection. Coal use depends heavily on local fuel, environmental requirements and project policy.

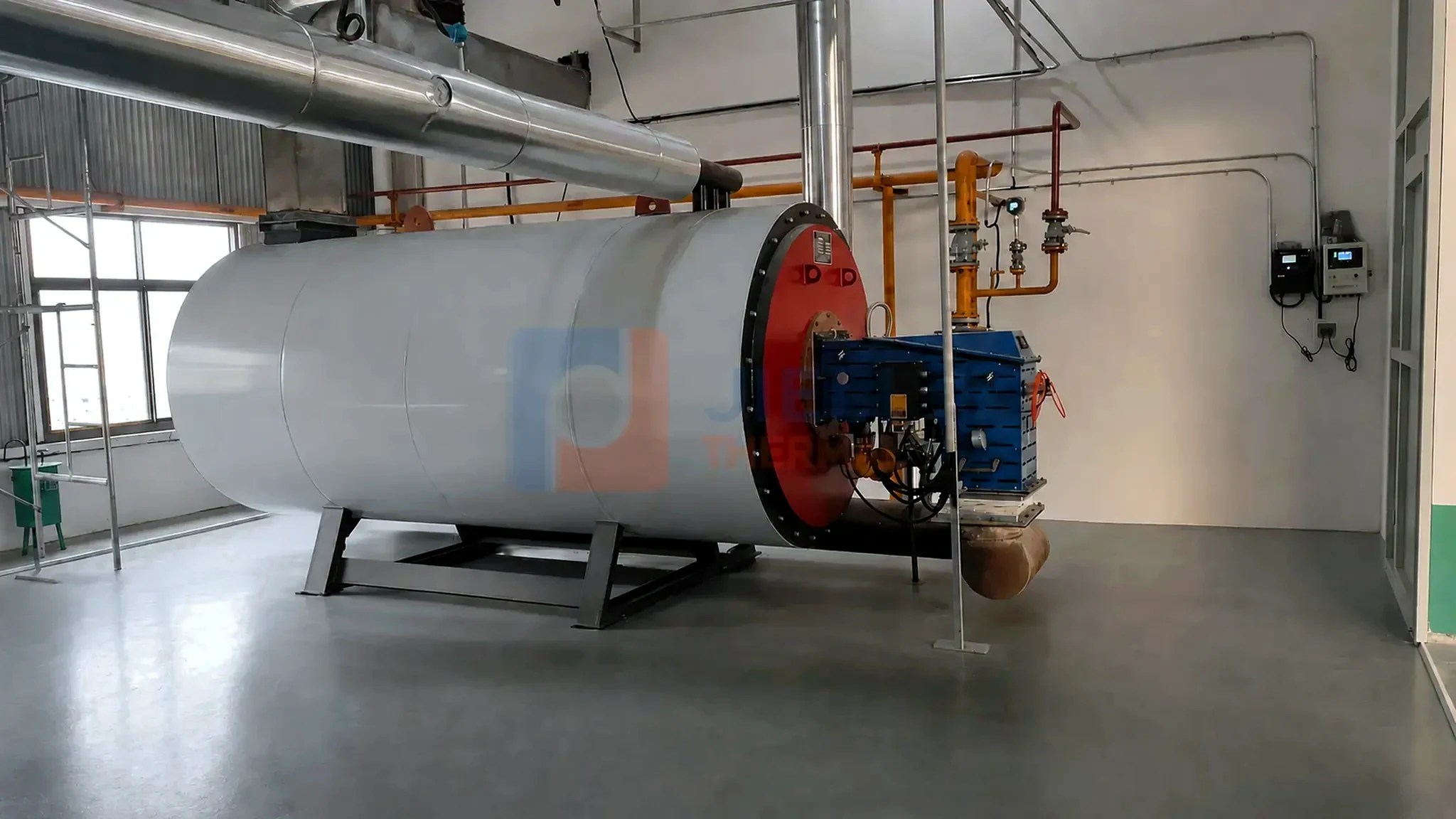

Compare the gas or oil-fired thermal oil heater with the biomass thermal oil heater on one useful-duty and scope basis. Include auxiliary power, startup, standby, maintenance and emissions equipment rather than comparing heater-body prices alone.

07 · CONTROL AND PROTECTION

Coordinate press demand with heater flow and temperature limits.

The project cause-and-effect matrix commonly considers circulation-pump status, verified flow or differential pressure, heater inlet and outlet temperatures, expansion-tank level, fuel or burner status and emergency shutdown. Exact instruments, voting, setpoints and responses depend on the heater, fluid, code and contracted scope.

Production control should avoid abrupt closure of every user branch while the heater is firing. Startup sequencing, minimum-flow provision, standby-pump philosophy and power-failure response should be reviewed before commissioning, not improvised at site.
