1. Inputs needed before estimating tank volume
Determine the thermal-fluid volume in the heater, users, supply and return piping, pumps, filters, heat exchangers and any connected equipment. Do not estimate from heater capacity alone. Then obtain the fluid supplier’s density or volumetric-expansion data between the actual cold-fill temperature and maximum bulk temperature.
- Total connected system volume at the defined reference temperature
- Cold-fill and maximum bulk-fluid temperatures
- Fluid manufacturer’s density or expansion curve
- Minimum operating level, maximum level and alarm or trip levels
- Deaeration, venting and optional nitrogen-blanketing arrangement
- Tank pressure, temperature, code, material and corrosion allowance
- Required static head and pump-suction relationship
2. Preliminary expansion-volume formula
A simple first estimate is:
Fluid expansion volume = total system charge × volumetric expansion fraction
The expansion fraction must come from the selected heat-transfer fluid at the project temperatures. If only density data are available, the volume ratio can be derived from the cold and hot densities for the same fluid mass. Apply any project engineering allowance explicitly and document its purpose; do not replace missing fluid data with a generic percentage.
3. Convert required expansion into total tank volume
The vessel cannot normally use 100% of its geometric capacity. Space may be required below the minimum operating level and above the high level for instruments, disengagement, blanket gas, thermal transients and code requirements.
Preliminary tank volume = required expansion volume ÷ usable operating fraction
For illustration only: if a 5,000 L system expands 18% over its actual temperature range, the calculated increase is 900 L. If the approved tank arrangement uses 55% of geometric volume between its defined cold and hot operating levels, 900 ÷ 0.55 = 1,636 L before any separately justified reserve or code requirement. The selected vessel would be reviewed at the next suitable standard size. This example is not a design recommendation; fluid, level and code data must be confirmed.

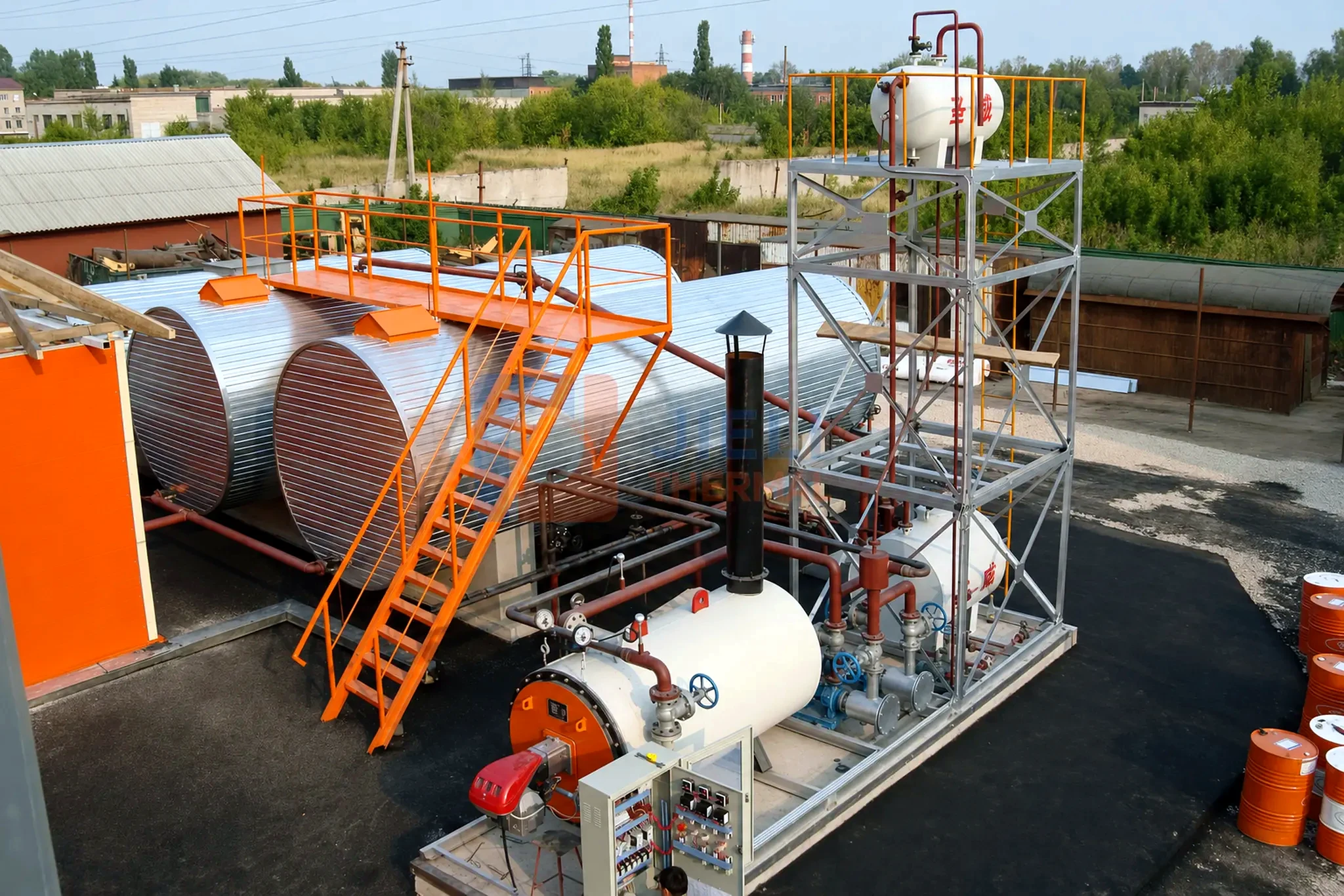

4. Position, connection and operating temperature
The tank elevation and connection affect pump suction, venting and system pressure. The arrangement should allow gas released from the circulating fluid to reach the deaeration or expansion point without trapping vapor. Tank temperature may need to be kept below the fluid supplier’s limit for oxidation control, particularly in open systems.
Open, sealed and nitrogen-blanketed systems have different vent, relief and control requirements. Final vessel pressure design, overflow or relief path, drain and containment must follow the selected arrangement and local rules.
5. Instruments and interlocks
Level indication should be readable in normal operation, with alarm or trip points coordinated to cold and hot levels. Temperature, pressure or blanket-gas monitoring may be required. Low level, abnormal pressure and loss of circulation should be evaluated in the heater’s permissive and trip logic.
The expansion tank is also related to the circulation pump’s suction and NPSH conditions. Tank and pump selections should be checked together, not issued as unrelated items.
6. Common sizing mistakes
- Counting only heater oil volume and missing long field piping or process exchangers
- Using one universal expansion percentage for every fluid and temperature range
- Treating geometric tank volume as fully usable operating volume
- Ignoring cold-fill temperature, nitrogen blanket, venting or deaeration
- Placing the tank without checking static head, pump suction and maintenance access
- Omitting high- and low-level consequences from the control review
Final design must be completed by qualified engineers using the chosen fluid data, vessel code, piping arrangement and project risk review.
